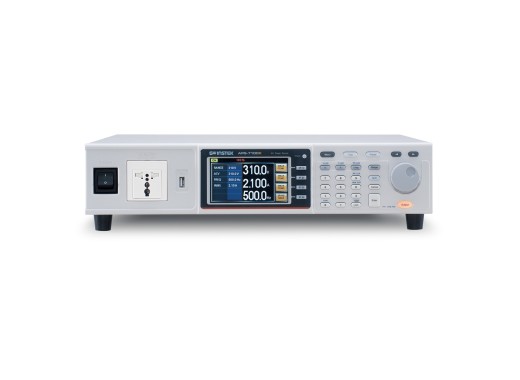

Alimentation GW Instek APS-7100E (prise universelle)
Détails
The GW Instek APS-7100E power supply belongs to the APS-7000 series and has a power of 1000VA. The power supply has a maximum output current of 8.4A and has a USB (Host) connection.
The APS-7000 series by GW Instek is a series of programmable AC power supplies, with many functions for testing and analyzing power supplies, electronic devices, components, and modules. The APS-7000 series is fully programmable. All parameters, values and measurement results are displayed simultaneously on the 4.3-inch TFT-LCD display.
The APS-7000 series has nine measurement functions (Vrms, Irms, F, Ipk, W, VA, PF, Ipk hold, CF) and can simulate multiple inputs. For example, a power failure can be simulated, which makes it easy to test how a connected circuit can handle it. In addition, several other scenarios can be programmed. The power supplies are not only able to generate sinusoidal AC, but also 50 other signals such as saw teeth and clipped signals.
Aperçu des modèles
Les principales différences entre les modèles de la série APS-7000 sont présentées dans le tableau ci-dessous.
| Modèle | APS-7050 (EU) / (Universal) | APS-7050E (EU) / (Universal) | APS-7100 (EU) / (Universal) | APS-7100E (EU) / (Universal) |
|---|---|---|---|---|
| Puissance | 500 VA | 500 VA | 1000 VA | 1000 VA |
| Courant de sortie (max) | 4,2 A | 4,2 A | 8,4 A | 8,4 A |
| Courant de sortie (crête) | 16,8 A | 16,8 A | 33,6 A | 33,6 A |
| Connectivité | USB (Host), LAN | USB (Host) | USB (Host), LAN | USB (Host) |
| Dimensions | 430 x 88 x 400 mm | 430 x 88 x 400 mm | 430 x 88 x 560 mm | 430 x 88 x 560 mm |
| Poids | 24 kg | 24 kg | 38 kg | 38 kg |
| Prix | EU: Uni: |
EU: Uni: |
EU: Uni: |
EU: Uni: |
Specifications
| Output voltage | 0 ~ 310 Vrms |
Frequency
| 45.0 ~ 500.0 Hz
| |
| Total harmonic distoration | < 0.5% |
| Crest factor | 4 |
| Display | 4.3" LCD |
Accessories
The APS-7100E power supply comes with the following accessories:
- Power cord
- Test lead
- Manual
- Déclaration d'étalonnage traçable
Téléchargements
| DTC sample |  (126.04 KB) | Télécharger |
| APS-7000 series datasheet | (6.69 MB) | Télécharger |
| APS-7000 series manual | (4.69 MB) | Télécharger |
