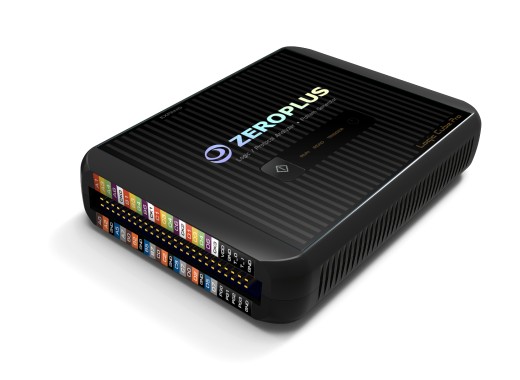

Zeroplus logic analyser LAP-C Pro series
Détails
These Zeroplus analysers offer the best of both worlds in the field of analysers. Some analysers offer 'unlimited' USB streaming of the data to a connected computer, other devices offer internal storage for limited logging the data. These devices offer both. It's possible to use the internal memory of at least 1Gbit, or stream the data to a connected PC for limitless storage.
The analysers are available with up to 32 channels and a sample rate of 2GHz. This means in practice that almost all digital signals can be recorded and analysed without distortion and very precisely. Combining this with decoding of up to 128 different protocols, the large internal storage, various triggering options and broad and precisely configurable trigger thresholds makes the product very usable and competitive with the competition. Le fichier d'installation des analyseurs LAP-C peut être téléchargé ici.
Models
The models in this series vary in a lot of specifications, the most important differences are listed below.
| Model | LAP-C Pro 16064M | LAP-C Pro 32064M | LAP-C Pro 32128M | LAP-C Pro 32256M |
|---|---|---|---|---|
| Channels | 16 | 32 | 32 | 32 |
| Memory size [Gbit] | 1 | 2 | 4 | 8 |
| Sample rate [GHz] | 1 | 2 | 2 | 2 |
| Protocol generator | Option |
I2C, SPI, UART(RS-232C/422/485), CAN |
||
| Price | ||||
Specifications
| OS support | Windows (10 / 8 / 7), Windows 11 (x86-64 processor only) |
| Input range | -6 V ~ +6 V |
| Input impedance | 500 kΩ / 10 pF |
| Dimensions | 126 x 95 x 25 mm |
Accessories
These devices in the LAP-C pro series come bundled with:
- USB Cable
- Measurement Cables
- Probe Clips
- Travel Bag
- User Manual
Avantages et inconvénients
- Live USB data transfer
- Large internal storage
- Broad range of input voltages
- Ready to use package
Téléchargements
| LAP-C Pro Quick Start guide |
 (674.52 KB) |
Download |
| LAP-C Pro Brochure |
(589.05 KB) |
Download |
