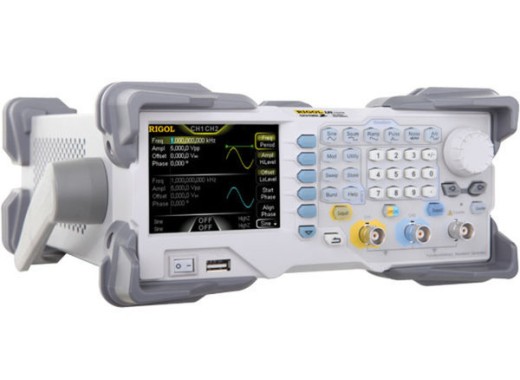

Rigol DG1032Z function generator
Détails
The Rigol DG1032Z function generator is the 30Hz model in the DG1000Z series of 2 channel function generators. The DG1000Z models are multifunctional and widely applicable. Several standard functions are built in. In addition to arbitrary functions, these generators can also generate pulses, noise and harmonics. The harmonics generator can generate up to 8th order signals. Standard there are 160 waveforms built in. With a 1 ppm frequency stability and only -125 dBc/Hz deviation, these generators are very precise.
For arbitrary functions the DG1000Z have a memory of 8 Mpts which can optionally be extended to 16 Mpts. These function generators are easy to set up using the 3.5" TFT colour screen and the simple control panel. Furthermore, the function generators can be programmed via a USB or LAN connection using the Ultra Sigma software.
Aperçu du modèle
| Modèle | Rigol DG1022Z | Rigol DG1032Z | Rigol DG1062Z |
|---|---|---|---|
| Largeur de bande | 25 MHz | 30 MHz | 60 MHz |
| Prix |
Caractéristiques techniques
| Fréquence DG1032Z |
|
||||||||||||
| Canaux | 2 | ||||||||||||
| Précision | ± 1 ppm | ||||||||||||
| Temps de montée/descente | < 10 ns (1 Vpp) | ||||||||||||
| Longueur de la fonction | 8 pts jusqu'à 2 Mpts, (16 Mpts en option) | ||||||||||||
| Résolution verticale | 14 bits | ||||||||||||
| Fonctions arbitraires intégrées | 160, y compris Sinc, Gauss, HaverSine, Lorentz | ||||||||||||
| Modulation | AM, FM, PM, ASK, FSK, PSK, PWM | ||||||||||||
| Écran | 3,5" TFT LCD (320 x 240), 16 M couleurs | ||||||||||||
| Dimensions de l'appareil | 261,5 mm x 112 mm x 318,4 mm (lxhxp) | ||||||||||||
| Poids | 3,2 kg |
Accessories
The DG1000Z function generators are supplied with:
- Power cord
- USB cable
- BNC cable
Téléchargements
| DG1000Z_DataSheet_EN |  (2.98 MB) | Télécharger |
| Rigol DG1000Z series user manual | (2.09 MB) | Télécharger |
