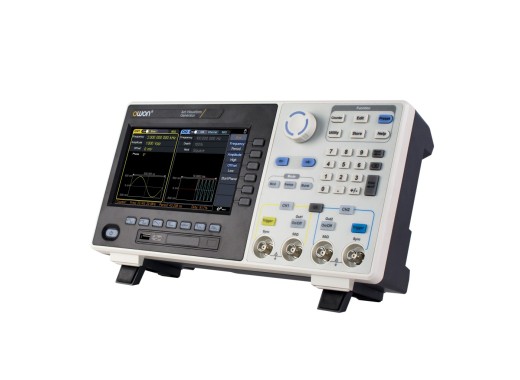

Owon XDG2060 function generator
Détails
The Owon XDG2060 is a 2-channel function generator that can generate signals with a maximum frequency of 60 MHz. The generators of the XDG2000 series have an excellent resolution of 1 µHz and have a sample rate of 500 MSa/s, which is more than enough for normal usage.
The XDG2060 is capable of generating 6 standard waveforms and 150 arbitrary waveforms. With the included PC software you can write advanced functions up to 10 million points. These waveforms can be stored on the function generator's internal memory via USB or LAN using a PC. The XDG2000 series also supports SCPI commands and LabView.
The function generator has an integrated high-quality frequency counter that can operate from 100 mHz to 200 MHz.
Model overview
We at Eleshop offer the 35, 60, 80 and 100 MHz models of the XDG2000 series.
| Model | XDG2035 | XDG2060 | XDG2080 | XDG2100 |
|---|---|---|---|---|
| Maximum output frequency | 35 MHz | 60 MHz | 80 MHz | 100 MHz |
| Price |
Specifications
| Vertical resolution | 14 bits |
| Frequency range | 1 µHz - 60 MHz |
| Number of channels | 2 |
| Sample rate | 500 MSa/s |
| Waveform length | 2 - 10M points |
| Display | 7" (800 x 480) LCD |
| Output impedance | 50 Ω |
| Inbuilt functions | Sine, Square, Pulse, Ramp, Noise, Harmonic |
| Modulation functions | AM, DSB-AM, FM, PM, ASK, FSK, PSK, BPSK, QPSK, 3FSK, 4FSK, OSK, PWM, SUM |
| Connectivity | USB (Host & Device), COM, LAN |
| Dimensions | 340 x 177 x 90 mm |
| Weight | 2.5 kg |
Accessories
The Owon XDG2060 comes with:
- Power cord
- User manual
- USB cable
- BNC cable
Avantages et inconvénients
- 10M points waveform length
- SCPI and LabView supported
Téléchargements
| Owon XDG2000 datasheet |
 (430.34 KB) |
Download |
| Owon XDG2100 quick guide |
(1.55 MB) |
Download |
