Owon EMI probe set
Détails

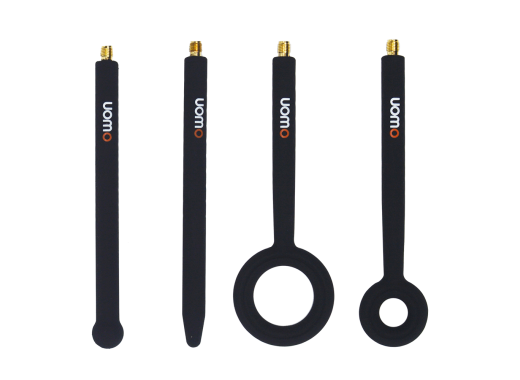

This EMI probe set from OWON consists of 4 probes with which electromagnetic emission can be measured. With these probes it is possible, for example during the development process of a device, to look at
whether there are any electromagnetic interference sources within the device. Measuring and locating electromagnetic emissions is important when testing whether a device complies with EMC guidelines.
The probes in this set are narrow and manageable, making it easy to measure emissions even in confined spaces. So you can also perform measurements on a PCB between different components or traces. The
set comes in a plastic protective case and contains besides the 4 probes also an N-SMA adapter and a 1 meter cable.
Probes
| Model | HW-30000-001 | HW-30000-002 | HW-30000-003 | HW-30000-004 |
|---|---|---|---|---|
| Bandwidth | 30 MHz - 3 GHz | 30 MHz - 3000 MHz | 30 MHz - 3 GHz | 30 MHz - 3000 MHz |
| Resolution | 2 mm | 1 mm | 10 mm | 25 mm |
| Impedance | 50 Ω | 50 Ω | 50 Ω | 50 Ω |
Accessories
This probe set is supplied including:- 4 Probes
- N-SMA adapter
- 1m Cable
- Plastic protective case
