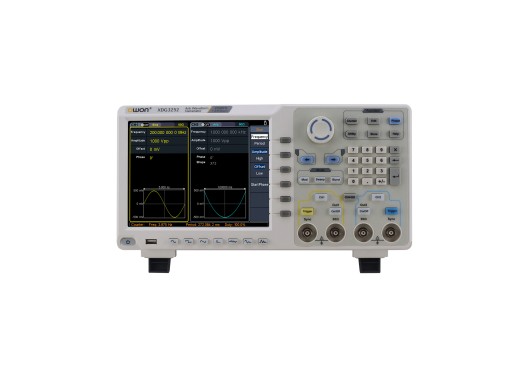

Owon XDG3202 function generator
Détails
The Owon XDG3202 belongs to the Owon XDG3000 series and has a maximum output frequency of 200 MHz.
The Owon XDG3000 series 2-channel function generators have an 8" LCD screen and have a resolution of 1 μHz. The XDG3000 is capable of generating 5 basic waveforms (sine, square, saw-tooth, pulse and noise) and 150 arbitrary waveforms. The most commonly used modulation functions are present. With the included PC software, you are able to write your own functions up to 1 million points. These waveforms can be stored via USB or LAN. These function generators also have an integrated frequency counter with a high accuracy, which can operate from 100 mHz up to 200 MHz.
Model overview
The models of the Owon XDG3000 series differ mainly in bandwidth. The most important specifications can be found in the table below.
| Model | XDG3082 | XDG3102 | XDG3162 | XDG3202 | XDG3252 |
|---|---|---|---|---|---|
| Maximum output frequency | 80 MHz | 100 MHz | 160 MHz | 200 MHz | 250 MHz |
| Maximum function length | 1 Mpts | 1 Mpts | 1 Mpts | 1 Mpts | 1 Mpts |
| Sample rate | 1.25 GSa/s | 1.25 GSa/s | 1.25 GSa/s | 1.25 GSa/s | 1.25 GSa/s |
| Price |
Specifications
| Vertical resolution | 14 bits |
| Display | 8" TFT LCD, 800x600 pixels |
| Built-in functions | Sine, square, saw-tooth, pulse, noise and arbitrary See the datasheet for the signal frequencies |
Modulation functions | AM, FM, PM, PWM, FSK, 3FSK, 4FSK, PSK, OSK, ASK, BPSK, sweep and burst See the datasheet for the modulation frequencies |
| Output impedance | 50 Ω |
| Frequency range | 1 μHz - 200 MHz |
| Amplitude range | 1 mVpp - max. 10 Vpp (50 Ω) 2 mVpp - 5 Vpp (high impedance) |
| Channels | 2 |
| Connectivity | USB HOST/DEVICE, LAN |
| Weight (without box) | 2.5 kg |
| Dimensions | 340 x 177 x 90 mm (BxHxL) |
Accessories
The Owon XDG3202 function generator comes with the following accessories:
- Quick start guide
- USB cable
- Power cord
- USB cable
- Q9 cable
