702.48 702,48 € Hors TVA
Livraison gratuite
Chargement
  •
Numéro de produit: ELE002635

Soyez le premier à commenter ce produit

Détails

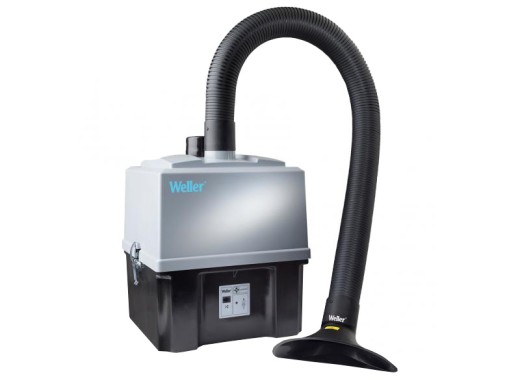

This Weller soldering fume extractor has the possibility to connect 2 extraction tubes and can therefore be used with 1 or 2 workstations simultaneously. The unit is transportable and can easily be placed in such a way that it does not get in the way. Thanks to the flexible suction tube and the included clip for table mounting, the extraction pipe can be easily installed in the desired position. The extraction unit has 4 different pump speeds. The extractor has a fine dust filter and an active carbon filter that ensures optimal particle filtration. The unit also has an electronic system to monitor the filters and in addition has an alarm to indicate that the filters need to be replaced. The 2 filters can be changed quickly and separately. Due to the large filter area, the filters have a long life span.

Be careful! This extractor comes with 1 extraction arm, 1 funnel nozzle, 1 fine dust filter and 1 main filter set.

Eleshop recommends that you use an extractor when soldering, as these processes release toxic substances and fine dust particles.

Specifications

Inlets 2
Power 120 W
Static pressure 2500 Pa
Airflow 76-182 m3/u (Eleshop measurement)
Noise level 54-76 dB (Eleshop measurement)
Filter Fine dust- (M5), Active carbon- and HEPA filter (H13)
Filter efficiency

99.95% of particles >0.3μm

Tube length 150 cm
Dimensions 335 x 360 x 445 mm
Weight 8.6 kg

Accessories

The Zero Smog El Kit 1 comes standard with:

  • 1x Extraction unit
  • 1x Extraction arm (1.5 m)
  • 1x Funnel Nozzle
  • 1x Fine dust filter M5
  • 1x Main filter set
