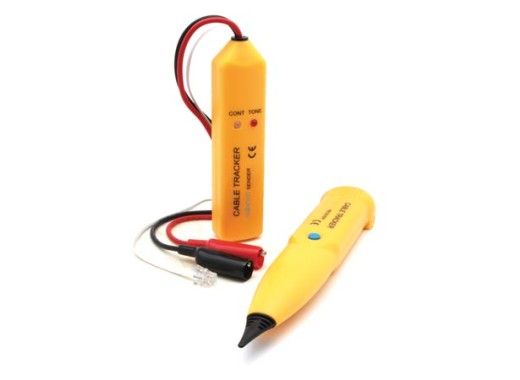

Very handy device which helps finding and tracking the right (telephone) cable in a tangle of different cables in a home, business premises, etc. This set consists of a transmitter and a receiver. The transmitter can be connected to an RJ11 connector as well as to loose wires by means of insulated terminals. A carrying bag is included with the transmitter-receiver set.
Possibilities:
- Track cable breaks
- Checks if the dial tone of a telephone line works
- Checks the operation of the telephone line (free, busy, call)
- Transmitter can send both single and alternating tones
Specifications
| Transmitted tone frequency (dual coil) | 1300 Hz - 1700 Hz |
| Sensitivity | > 30 mV |
| Maximum volume | ± 100 dB |
| Output blockwave | ± 3,5 Vpp |
| Dimensions receiver | 238 x 43 x 26 mm |
| Dimensions transmitter | 145 x 35 x 25 mm |
| Receiver weight | 106g (including battery) |
| Transmitter weight | 114g (including battery) |
Avantages et inconvénients
- Connection to loose wires possible
Téléchargements
(335.88 KB)
