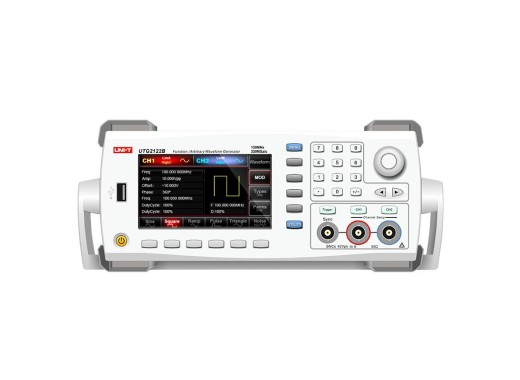

UNI-T UTG2122B function generator
Détails
The UNI-T UTG2122B function generator belongs to the UNI-T UTG2000B series and has a maximum bandwidth of 120 MHz.
The UNI-T UTG2000B series are 2-channel function generators with a 4.3" LCD screen and are able to generate a large number of functions, thanks to the 16-bit D/A converter. Arbitrary waveforms can be stored and generated using a PC via USB. The UTG2000B series models offer various modulation options such as AM, FM, PM, ASK, FSK, PSK, BPSK, QPSK, OSK, SUM, DSBAM, QAM, and PWM. The generators have a USB port on the front and on the back for various Host/Device applications. With PC software, various signals are easy to generate. These signals can be up to 16M points long.
Model overview
The models in the UTG2000B series mainly differ in maximum bandwidth.
| Model | UTG2062B | UTG2082B | UTG2122B |
|---|---|---|---|
| Bandwidth | 60 MHz | 80 MHz | 120 MHz |
| Price |
Specificaties
| Vertical resolution | 16 bits |
| Working modes | Output on/off, continuous, modulation, sweep, burst |
| Display | 4.3" TFT LCD, WVGA (480 x 272) |
| Built-in functions | Sine, square, ramp, pulse, noise, DC, arbitrary, harmonic |
| Bandwidth | 1μHz - 120 MHz |
| Channels | 2 | Maximum function length | 16M points | Sample rate | 320MS/s |
| Connectivity | USB Host, USB Device, 10MHz clock source input/output |
| Weight | 3.2kg |
| Dimensions | 265 x 110 x 320 mm |
Accessories
The UNI-T UTG2122B function generator comes with the following accessories:
- BNC-BNC cable
- BNC cable with crocodile clips
- Power cord
- USB cable
