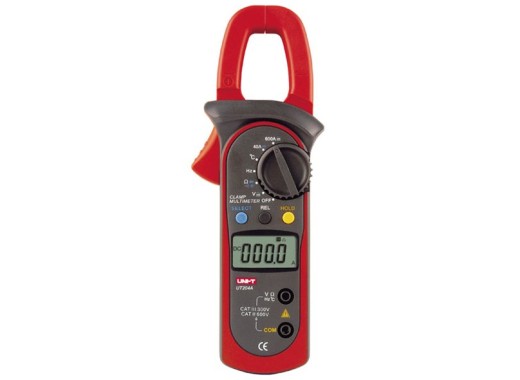

UNI-T UT204A current clamp

45.46 45,46 € Hors TVA
Ce produit est retiré
  •
Numéro de produit: ELE002836

Soyez le premier à commenter ce produit

Meilleur prix garanti

Détails

The UNI-T UT204A is an entry-level current clamp which is able to perform all basic functions like measuring voltage, current and resistance. Besides that it is also capable of measuring capacitance, frequency and temperature. The UT204A has a 4000 counts display and it can measure both DC and AC voltages and currents. The current clamp is rated with CAT II 600V and CAT III 300V.

Specifications

Range and resolution
DC Voltage0.1mV - 600V (±0.8%+1)
AC Voltage1mV - 600V (±1%+5)
DC Current10mA - 600A (±2%+5)
AC Current10mA - 600A (±2.5%+5)
Resistance0.1Ω ~ 40 MΩ (±1%+2)
Capacitance1pF ~ 100µF (±4%+3)
Frequency1mHz ~ 10MHz (±0.5%+3)
Temperature-40°C ~ 1000°C (±2.5%+3)
Display count 4000 counts
Remaining measurements Diode tester, Continuity, NCV
Overload protection
Yes
Dimensions 208 x 76 x 30 mm
Weight 260g

Accessories

The UT204A comes bundled with:

  • Test probes
  • Carrying bag
  • Point contact temperature probe
  • Batteries
  • User manual

Avantages et inconvénients

  • Entry-level
  • AC and DC measurements
  • Temperature and capacitance measurements
  • Dislay counts lower than similar models

Téléchargements

UNI-T UT204A user manual
 pdf (4 MB) Download
