Rohde & Schwarz RTM2024 oscilloscope
Détails

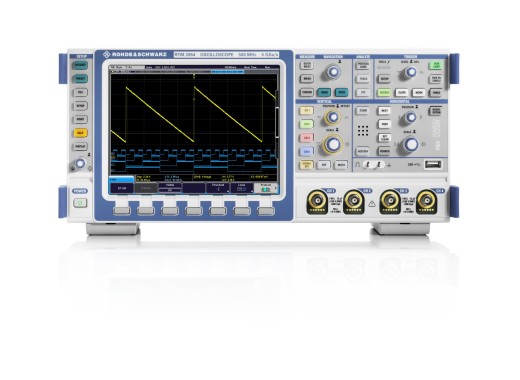

The Rohde & Schwarz RTM2024 is a 4-channel oscilloscope and the 200MHz version in the RTM2000 series from Rohde & Schwarz. The series digital oscilloscopes have a good vertical sensitivity and because of the low noise of the inputs, the measuring accuracy is good. These oscilloscopes have a bandwidth of 200 MHz to 1 GHz and there are 2 or 4 channels available. The RTM2000 series oscilloscopes start up in about 15 seconds, so you can quickly get started with your measurements. Furthermore, these oscilloscopes have a lot of measurement functions and mathematical functions. For example, the QuickMeas function allows you to quickly retrieve general measurement data. The RTM2000 series of oscilloscopes also contains a digital voltmeter and a frequency counter.
Additional options can be viewed at the bottom of options
Models
The oscilloscopes of RTM series only differ in bandwidth, channels and price.
We only sell the RTM2022 and RTM2024 at Eleshop. If you are interested in one of the other models below, please contact us
| Model | Bandwidth | Channels | Price |
| RTM2022 | 200 MHz | 2 | |
| RTM2024 | 200 MHz | 4 | |
| RTM2032 | 350 MHz | 2 | |
| RTM2034 | 350 MHz | 4 | |
| RTM2052 | 500 MHz | 2 | |
| RTM2054 | 500 MHz | 4 | |
| RTM2102 | 1 GHz | 2 | |
| RTM2104 | 1 GHz | 4 |
Specifications
| Maximum sample rate | 5 GSa/s |
| Maximum memory depth | 20 MPts |
| Waveform capture rate | 12500 wfms/s |
| Trigger types | Edge, Pulse width, Patten, Video, Runt, Risetime |
| Waveform math functions | More than 30 different functions |
| Vertical scale | 1 mV/div - 10 V/div |
| Horizontal scale | 1 ns/div ~ 500 s/div |
| Display | 21.3 cm (8.4") LC TFT color display |
| Display resolution | 1024 x 768 pixel (XGA) |
| Connectivity | USB (Type A), LAN/Ethernet (RJ45), and USB (Type B) |
| Dimensions | 403 x 189 x 142 mm |
| Weight | 4.1 kg |
For more information, see the brochure or datasheet.
Software, firmware and drivers
The software, firmware and drivers of the oscilloscopes can be found at the manufacturer's website on the right.
Accessories
The Rohde & Schwarz RTM2000 series oscilloscopes are supplied with:
- Power cord
- Manual
- CD with use and service manual
- 2 or 4 probes: RT-ZP05 (up to 500MHz, 10:1 with attenuation ID)
Options
Additional software functions are available for these oscilloscopes. In the table below, some of them are listed. By clicking on the code of the options you will reach the page where you can add these options to your shopping cart. If you need any other software functions, please contact us
| RTM-K1 | This option offers the I2C and SPI trigger and decode functionality. |
| RTM-K2 | This option provides the UART/RS-232/RS-422/RS485 trigger and decode functionality. |
| RTM-K3 | This option offers the CAN/LIN trigger and decode functionality. |
| RTM-K15 | This option allows the user to view the user history. Furthermore, the memory of the oscilloscopes can be segmented, making the waveform capture rate up to 100 000 waveforms/s. |
| RTM-Z1 | This is a front cover for the oscilloscopes. |
| RTM-Z3 | This is a carrying case for the oscilloscopes, making it easier and more convenient to carry. |
Téléchargements
| R&S RTM brochure |  (10.74 MB) | Télécharger |
