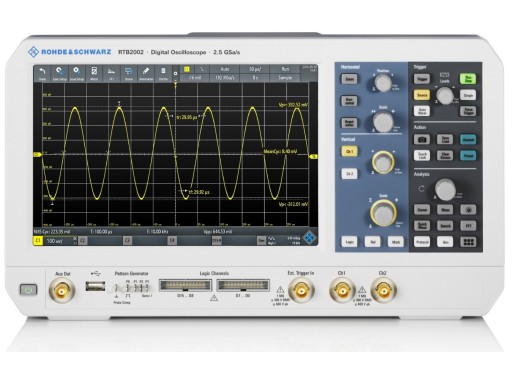

Rohde & Schwarz RTB2K-COM2
Détails
Rohde & Schwarz RTB2K-COM2 is a premium 2-channel oscilloscope with 300 MHz bandwidth. It has the largest and sharpest screen in its class, namely a 10.1" capacitive touchscreen with 1280 x 800 pixels. This makes the oscilloscope ideal to read all your measurements and to zoom in and out easily, just like you are used to on your smartphone. Thanks to the excellent high waveform capture rate and sample rate, it guarantees a responsive and reliable scope that can measure even the smallest signal errors. The 10-bit A/D converter is a fourfold improvement compared to the standard 8-bit A/D converters. You get a sharper signal with a lot of details.
R&S Full Package RTB
The Rohde & Schwarz RTB2K-COM2 Promotion gives users more than just an oscilloscope. The Full Package RTB2002 comes with 2x RT-ZP03 probe, RTB-B223 bandwidth upgrade (300 MHz), RTB-B1 MSO upgrade option and RTB-PK1 option bundle.
Specifications
| Channels | 2 |
| Bandwidth | 300MHz |
| Sample rate |
1.25GSa/s per channel
2x 2.5GSa/s interleaved |
| Waveform capture rate | 50,000 wfms/s |
| Memory depth | 10MPts per channel
2x 20MPts interleaved |
| Vertical scale | 1mV/div - 10V/div |
| Vertical bits | 10 |
| Horizontal scale | 1ns/div - 500s/div |
| Waveform/Pattern generator option | Yes |
| Logic analyzer option | Yes |
Accessories
The Rohde & Schwarz RTB2K-COM2 is supplied inclusive
- 2x RT-ZP03 probe
- Power cord
- User Manual
Avantages et inconvénients
- Professional scope
- Extensive upgrade
- Large and high-resolution 10.1" touchscreen
- 10-bit A/D converter
- Despite high quality, price is a bit high
Téléchargements
| RTB2000 series brochure |  (9.01 MB) | Télécharger |
| RTB2000 series datasheet | (1.42 MB) | Télécharger |
| RTB2 series user manual | (13.6 MB) | Télécharger |
