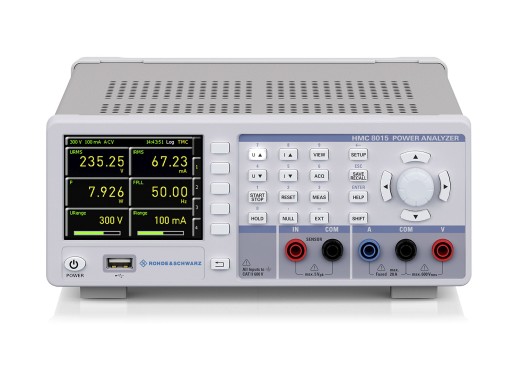

Rohde & Schwarz HMC8015 Power Analyser

The Rohde & Schwarz HMC8015 is a compact AC/DC power analyser, which can perform various power measurements completely stand-alone for long periods of time, but can also be connected to a PC for extensive operation.

The meters can display 26 parameters and have a very high measuring resolution. Optionally, current clamps and other measuring equipment can be connected to the meter. These measurements can be displayed on the screen 10 measurements at once, and are updated 10 times per second.

The meters have USB-TMC and Ethernet/LXI connectors, and can optionally be equipped with a GPIB connector. Via the USB connector it is possible to log data on a USB stick for a longer period of time. It is also possible to operate the devices remotely via LAN or USB via Labview, for example.

This product is the only power analyser in its class that has a 5V measurement range which offers embedded designers very high resolution for power and energy analyses. With the HOC151 option the device is also unique by graphically displaying harmonics and graphic trend plots of U,I,P,S, Q and F values.

Specifications

For more information u can take a look at the manual and datasheet.

Software, firmware and drivers

The software, firmware and drivers of this power analyser can be found on the website of the manufacturer, on the right hand side.

Accessories

The power analysers in the Rhode&Schwarz HMC8015 series are delivered with:

• Manual
• Power cord

Options

There are some optional software functions available for these power analysers. In the manual you can find out exactly what functionality each option consists of. Below is a brief overview. The options can be checked with the product, or added at a later date.
