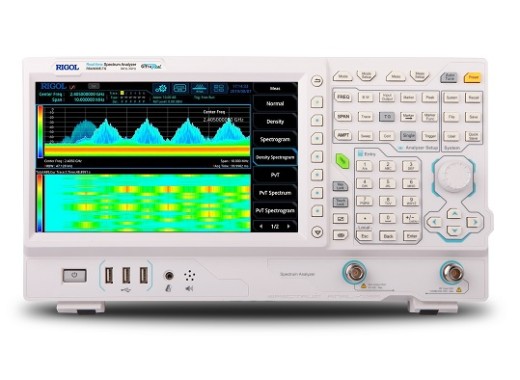

The Rigol RSA3015E is a real-time spectrum analyser in the RSA3000E series.
A real-time spectrum analyzer uses the Fast
Fourier Transform to convert the signal from the time domain to the frequency domain. This ensures that
short and fast signals are better captured. This mode guarantees not to miss a single signal with a duration longer than 7.45 µs. In addition to the real-time mode, these analysers also have the 'sweep' mode, which allows you to completely analyse the signal in just 1ms.
Due to the low Displayed Average Noise Level of these analysers, low-power signals such as harmonics and sources of interference are
well displayed and easy to troubleshoot. It is also easy, due to the low minimum resolution bandwidth of 1 Hz,
to keep signals with frequencies close to each other apart. Furthermore, there are 7 real-time visualization modes
and the analysers have powerful trigger capabilities.
The analysers in this series feature a large 10.1" multi-touch screen for easy operation. In addition
it is also possible to connect a keyboard, mouse, monitor or PC and use it to operate the analyzers.
The difference between the RSA3000E and the RSA3000 series is that the RSA3000E series does not have an upgradeable RBW, while the RSA3000 series does have one.
The models within the RSA3000E series mainly differ from each other in frequency range. The models with -TG in the name are supplied with a built-in tracking generator. The specifications of the tracking generator can be found under the heading 'Specifications'.
Model | RSA3015E | RSA3015E-TG | RSA3030E | RSA3030E-TG |
---|---|---|---|---|
Frequency range | 9 kHz - 1.5 GHz | 9 kHz - 1.5 GHz | 9 kHz - 3 GHz | 9 kHz - 3 GHz |
Tracking generator | No | Yes | No | Yes |
Price |
Resolution | 1 Hz |
Internal reference frequency | 10 MHz |
Maximum input voltage | 50 V |
Real-time analysis bandwidth | 10 MHz |
Maximum input power | 25 mm |
DANL | ≤-161 dBm |
Phase noise | ≤-102 dBc/Hz |
Amplitude display | Log: 1 - 200 dB Linear: 0 - reference |
Min. RBW | 1 Hz |
Third order intercept | +15 dBm |
Interfaces | USB host, USB device, LAN, HDMI |
Display | 10.1" touchscreen (1024x600) |
Weight | 4.65 kg |
Dimensions | 410 x 224 x 135 mm |
Model | RSA3015E-TG | RSA3030E-TG |
---|---|---|
Frequency range | 100 kHz - 1.5 GHz | 100 kHz - 3 GHz |
Output level range | -40 - 0 dBm | -40 - 0 dBm |
Output level resolution | 1 dB | 1 dB |
For more information and specifications you can find the datasheet of the RSA3000E series at the bottom of this page.
RSA-EMI measurement application | This EMI software package for the RSA3000E is a complete EMI pre-compliance solution with preset scans, peak tests, limits and multiple CISPR detectors. | |
RSA-PA preamplifier | This option activates the front-end preamplifier of the RSA3000E series. | |
Near Field Probe kit | This Near Field Probe kit (NFP) from Rigol is designed for EMC diagnosis in the frequency range of 30 MHz to 3 GHz. Suitable for all Rigol spectrum analysers. | |
RSA-EMC option | Rigol RSA3000E EMC option provides Quasi-Peak detection and EMI filter. | |
RSA-AMK option | Rigol RSA3000E AMK option that drastically extends the measurement capabilities of the Rigol RSA3000E spectrum analysers. | |
RSA-ASK/FSK option | Rigol RSA3000E ASK/FSK option provides ASK/FSK Demodulation for the Rigol RSA3000E spectrum analysers. |
Rigol RSA3000E datasheet |
(2.32 MB) | Download |
RSAxxx(N) EMI Mode - Getting Started |
(1.13 MB) | Download |
RSA EMI mode getting started |
(1.13 MB) | Download |
