Numéro de produit: ELE002535

Soyez le premier à commenter ce produit

Détails

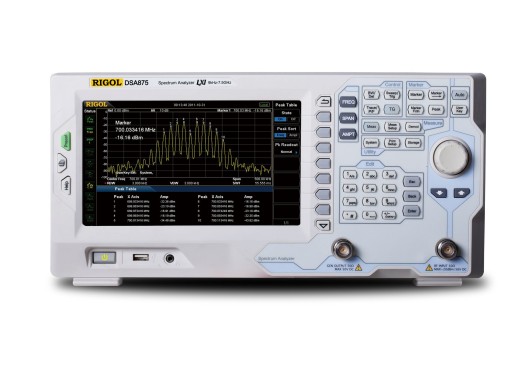

The Rigol DSA875-TG is a 7.5 GHz spectrum analyser. This series of spectrum analysers offer great performance at an affordable price. The analysers are equipped with a widescreen display and a user-friendly interface that makes it easy to use. These spectrum analysers are based on a fully digital intermediate frequency filtering which makes it easy to use, ensures high resolution, high measuring speed and low noise.
The spectrum analysers can be connected to a computer via USB, LAN or optional GPIB connector, and then via Ultra Sigma, or NI software can be easily communicated with the analyser. In addition, various information can be stored on a memory stick via the built-in USB port. Furthermore, the analysers have a headphone jack to perform AM/FM demodulation and hear the audio exhaustion. These spectrum analysers are well suited to perform EMI measurements, for example, before the device to be tested is sent to an inspection body. goes. By saving a single trip to an inspection body, this device already earns itself back.

Models

The models in this series differ in frequency range, phase noise and DANL (Displayed Average Noise Level). In the upper right corner of the dropdown menu you can select the desired version and add it to your shopping basket.

DSA815-TG
ModelDSA815
DSA815-TG
DSA832E
DSA832E-TG
DSA832
DSA832-TG
DSA875
DSA875-TG
Frequency range 9 kHz - 1.5 GHz 9 kHz - 3.2 GHz 9 kHz - 3.2 GHz 9 kHz - 7.5 GHz
Phase noise -80 dBc/Hz -90 dBc/Hz -98 dBc/Hz -98 dBc/Hz
DANL -155 dBm -158 dBm -161 dBm -161 dBm
Price (2 channels)


Tracking Generator Specifications (-TG models)

The models with a -TG after the name are delivered with a Tracking Generator.

DSA875-TG
ModelDSA815-TGDSA832E-TGDSA832-TGDSA875-TG
Frequency range 100 kHz - 1.5 GHz 100 kHz - 3.2 GHz 100 kHz - 3.2 GHz 100 kHz - 7.5 GHz
Output level -20 - 0 dBm -40 - 0 dBm -40 - 0 dBm -40 - 0 dBm
Output level resolution 1 dB 1 dB <1 dB 1 dB

Specifications

Display 8" LCD, 800*480 pixels
Resolution  1 Hz
Internal reference frequency 10 MHz
Third-order intercept (IP3) +10 dBm (-815)
+7 dBm (-832E)
+11 dBm (-832)
+15 dBm (-875)
Maximum input voltage 50V DC
Maximum input power 30 dBm
Amplitude display

Log: 1 dB - 200 dB

Linear: 0 - Reference level

Connections USB 2.0 type A, USB 2.0 type B, Lan
Frequency counter
Yes
Weight (without box) 4.25 - 4.55 Kg
Dimensions 361.6 x 178.8 x 128 mm (WxHxD)

Options

DSA800-EMI paquet Cette offre groupée contient l'extension fonctionnelle EMI-DSA800, le kit de sonde de champ proche NFP-3 et le logiciel PC de pré-conformité EMI S1210.

RSA-EMI

Rigol DSA800 EMI bundle
834.71 834,71 € Hors TVA
DSA800-EMI measurement application This extension adds an EMI filter, Quasi-Peak detector and EMI resolution bandwidth functions to your DSA800 series spectrum analyser.

DSA800-EMI

Rigol DSA800 EMI software extension
499 499,00 € Hors TVA
Info
Near Field Probe kit This Near Field Probe kit (NFP) from Rigol is designed for EMC diagnosis in the frequency range of 30 MHz to 3 GHz. Suitable for all Rigol spectrum analysers.

NFP-3

Rigol NFP-3 Near Field Probe kit
461.03 461,03 € Hors TVA
Info

Accessories

The DSA800 series come bundled with:
  • User manual
  • Power cord
