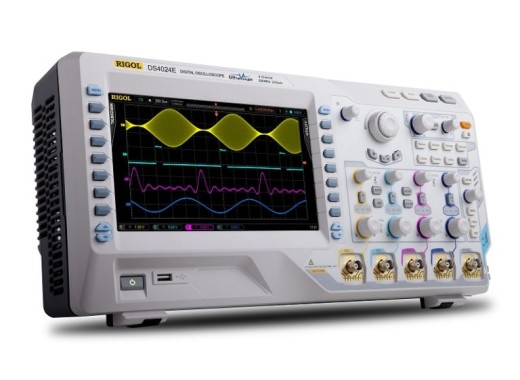

Rigol DS4024E oscilloscope

The Rigol DS4024E is a 4-channel oscilloscope and the 200 MHz version in the DS4000E series of Rigol. The DS4000E series is Rigols reply to the demand for affordable and good 4 channel scopes.With a bandwidth up to 200 MHz and 2 GS/s sample rate per channel, these scopes offer a greaat set of feeatures at an attractive price.

Signal

Apart from the hight bandwidth and fast sample rate, these scopes also offer a large signal memory per channel, and a high waveform capture rate. The scopes can record and playback up top 127,000 frames of the signal measurement. The low noise floor allow for precise measurements to be displayed on the large internal display.

Connectivity

The scopes offer a variety of connections. They can be coupled to a multitude of peripherals through USB, LAN, VGA en AUX, en optionally through GPIB. In addition the scopes offer an USB connector that can be used to store data on a memory stick.

As an introductory promotion the scopes come combined with a free decoding bundle for decoding: RS232, SPI, I2C, CAN and LIN.

Models

Specifications

For more details on the specifications of these Rigols the data-sheet can be consulted.

Accessoires

These scopes come bundled with:

• 4 passive probes (350 MHz , type RP3300A)
• USB data cable
• Power cable
• Front panel cover
• Quick start guide
• 3 years warranty

Téléchargements

DS4000E_DataSheet_EN

(3.89 MB)

Télécharger
