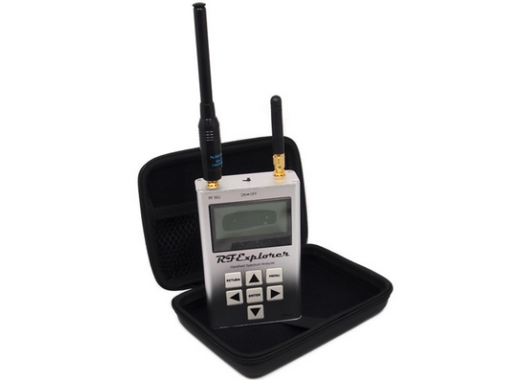

The main product of the RF Explorer WIFI COMBO package is a handheld spectrum analyser, which can be used to measure in the frequency range of 2350 to 2700 MHz and 4850 to 6100 MHz. This package also includes a 2.4 GHz whip antenna and a 5.8 GHz rubber duck antenna. This makes the meter suitable for use in the frequency range of e.g. Bluetooth, GPRS and 2.4 and 5 GHz WiFi networks.
The handheld spectrum analysers of RF Explorer are inexpensive but still have a surprising list of specifications. When designing, installing and troubleshooting wireless systems, it is often quite difficult to predict the propagation of radio waves. These inexpensive analysis devices offer the possibility to visualize the properties of various frequencies.
These solid aluminium spectrum analysers have a large battery, so they can be used for more than 16 hours on one charge. With the included software they can display data on a PC, in high detail and with various functions such as "3d-waterfall" display, CSV and image export. In addition, the meter can be connected to a telephone via an OTG cable and measured via a Android app. This app can be downloaded and tried for free, but requires an optional license to work with the meter. Optionally there are several third party software packages available through this site. Users receive lifelong firmware updates for free.
By means of an internal upgrade connector, various extensions can be added to the analyser at a later stage.
Bandwidth | 2350 - 2700 MHz, 4850 - 6100 MHz |
Span | Left side: 2 - 600 MHz Right side: 2 - 85 MHz |
Frequency resolution | 1.0 kHz |
Average noise floor | -105 dBm |
Amplitude resolution | 0.5 dBm |
Automatic RBW | 58 - 812 kHz |
RF Impedance | 50 Ω |
RF generator | 2350 - 2550 MHz -30 - 1 dBm |
Frequency accuracy | Left side: 0.5 ppm Right side: 10 ppm |
Display | 128 x 64 pixels |
Connectivity | |
Weight | 358 grams |
Dimensions | 113 x 70 x 25 mm |
This combo consists of:
