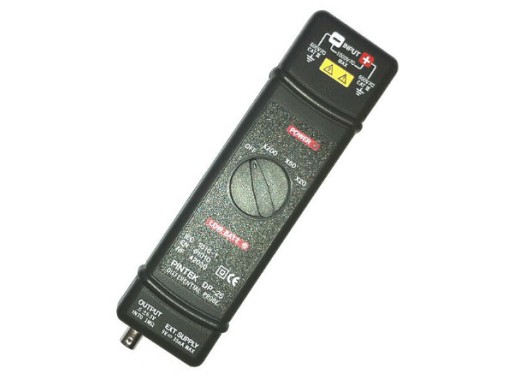

Pintek DP-25 differential probe

This differential probe is suitable for potentials up to 400 V DC or AC to ground or 1000 V differential. With this differential probe you can safely measure high voltages with floating potentials. Converts high voltage floating signals into low voltage signal relative to earth for display on an oscilloscope.

The output of this probe is optimized for a load with input impedance of 1 MΩ, making it suitable for almost all oscilloscopes. This differential probe is powered by an external power adapter that is supplied as standard.

Specifications

• Peak voltage: 1000V
• Attenuation: 20x, 50x, 200x
• Accuracy: |20%± 2%
• Maximum output voltage: ≤ 5.0V
• Connections: BNC
• Bandwidth: 25 MHz

Accessories

• BNC- BNC cable (type BP-250)
• 2x crocodile clips
• 2x precision measuring clamps
• 2x banana plug cable
• 9V DC power adapter

For more information, please refer to the datasheet.
