Siglent mechanical calibration set for VNA
Détails

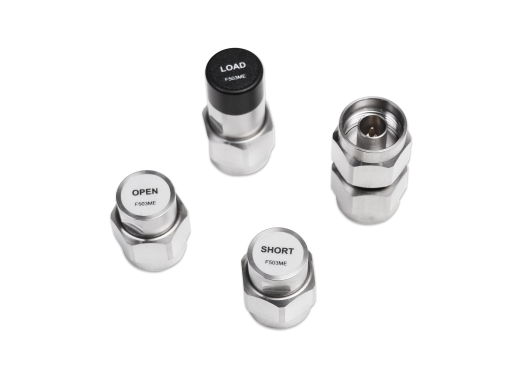

This mechanical calibration set can be used for the VNA of the Siglent SVA1000X or SSA3000X-R spectrum analysers. The difference between the different models is the frequency and connection type.
The set consists of:
- Open load
- Short-circuited load
- Phase matched load (50 Ω)
- Through adapter
Model overview
| Model | Frequency | Connection |
|---|---|---|
| F503ME | 4.5 GHz | N-male |
| F503FE | 4.5 GHz | N-female |
| F603ME | 4.5 GHz | SMA-male |
| F603FE | 4.5 GHz | SMA-female |
| F504MS | 9 GHz | N-male |
| F504FS | 9 GHz | N-female |
| F604MS | 9 GHz | SMA-male |
| F604FS | 9 GHz | SMA-female |
