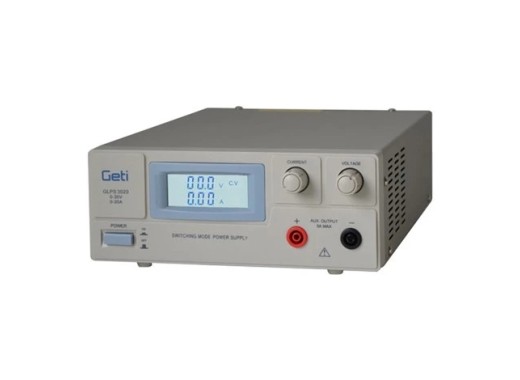

0-30V 0-20A power supply
Détails
This power supply belongs to the LABPS3000SM series and is capable of supplying currents up to 20A and voltages up to 30V. The power supply is equipped with an LCD screen for displaying the voltage and current. This model also has a regulated voltage indication. This model also has a short-circuit protection that automatically switches the power supply off and on again.
Model overview
The power supplies in this series differ mainly in their maximum voltage and current that can be supplied. In addition, the heavier models have a higher weight and larger dimensions. The specifications are shown in the table below.
| Model | LABPS3020SM | LABPS3030SM | LABPS3060SM | LABPS6030SM |
|---|---|---|---|---|
| Voltage | 0 - 30 V | 0 - 30 V | 0 - 30 V | 0 - 60 V |
| Current | 0 - 20 A | 0 - 30 A | 0 - 60 A | 0 - 30 A |
| Ripple voltage (pk-pk) | < 100 mV | < 100 mV | < 120 mV | < 20 mV |
| Price |
Specifications
| Adjustable voltage | Yes |
| Adjustable current | Yes |
| Fuse | T4 |
| Dimensions | 336 x 87 x 214 mm |
| Weight | 2.7 kg |
For more information, see the manual below.
