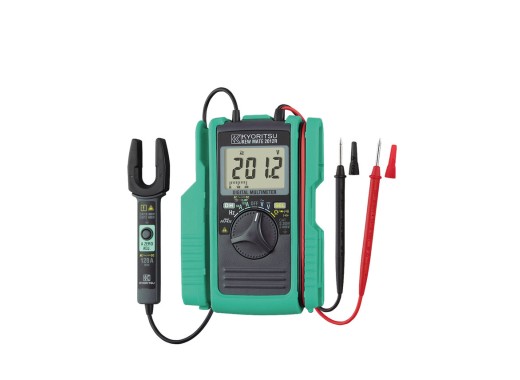

Multimètre et pince ampérométrique Kyoritsu 2012RA
Détails
The Kyoritsu 2012RA is a true RMS multimeter with an included current probe that can measure up to 600V/120A. This meter features all basic multimeter measurement functions such as voltage, current, resistance, continuity, diode test, capacitance and even frequency. Next to this it comes with a built in current clamp with a open-jaw specification that supports conductor diameters up to 12 mm. This clamp has been designed and optimized specifically for working in tight spaces where other clamps are too large. The current probe also features quick one-button zero adjust.
Because the 2012RA supports true RMS measurements, it is particularly good at providing accurate measurements in the presence of harmonics. Therefore, this meter is perfectly suited for work with photovoltaic installations, inverters, fluorescent lamps, and UPS's. All these functionalities together make for a very versatile multimeter.
Specifications
| Max. Voltage DC | 600.0 V |
| Max. Voltage AC | 600.0 V |
| Max. Current DC & AC | 120.0 A |
| Max. Resistance | 60.00 MΩ |
| Continuity buzzer | sound below 35 ± 25 Ω |
| Diode test | 2 V (open-loop voltage: ± 2.7 V) |
| Max. Capacitance | 40.00 µF |
| Frequency AC A | 100 Hz - 10 kHz (current > 2 A) |
| Frequency AC V | 100 Hz - 300.0 kHz (voltage > 2 V) |
| Maximum conductor size | ⌀ 12 mm |
| True RMS | Yes |
| Safety standards | CAT III 300V & CAT II 600V |
| Power source | R03 1.5 V x 2 (AAA) |
| Dimensions | 128 x 92 x 27 mm |
| Weight | 220 g |
Accessories
The Kyoritsu 2012RA includes:
- Batteries
Avantages et inconvénients
- Sonde de courant incluse
- Vraie valeur efficace
- Étui absorbant les chocs qui maintient la pince et les fils d'essai
- Réglage rapide du zéro à l'aide d'un seul bouton
- Pas de fils d'essai amovibles
Téléchargements
| Kyoritsu 2012R Datasheet |
 (1.97 MB) |
Download |
