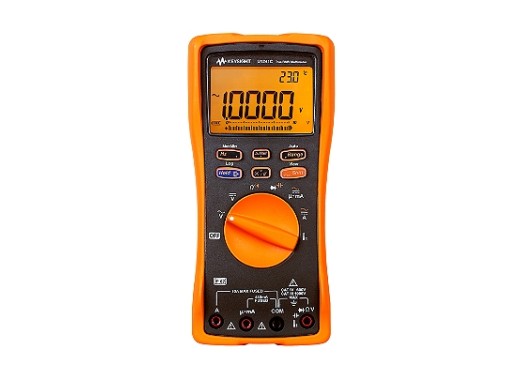

Keysight U1241C multimeter
Détails
The Keysight U1241C multimeter is the successor of the U1241B. It is an accurate 4-digit multimeter (10,000 count) with 0.09% DC voltage accuracy, and True RMS measurement.
Measures AC and DC voltage and current, resistance, frequency, continuity, diodes, capacity and temperature. In addition, the U2141C is equipped with a relay test function.
This allows quick and easy detection of relay contact problems in control cabinets. The meter is also equipped with a min/max hold function.
The battery life has now been extended to a working time of up to 400 hours! The meter is equipped with CAT III 1000V / CAT IV 600V overvoltage protection.
The backlight of the display is adjustable in intensity. Furthermore, this meter is so robust that it survives a fall of 3 meters and an IP67 rating.
for protection against water and dust.
Specifications
| Svoltage range (resolution) | DC: 100 mV - 1000 V (0.1 mV - 0.1 V) AC: 100 mV - 1000 V (0.1 mV - 0.1 V) |
| Basic accuracy | DC: 0.09%+2 AC: 1.0%+3 |
| Current range (resolution) | DC: 1000 μA - 10 A (0.1 μV - 0.001 A) AC: 1000 μA - 10 A (0.1 μV - 0.001 A) |
| Basic accuracy | DC: 0.1%+2 AC: 1.0%+3 |
| Resistance range (resolution) | 1000Ω - 100 MΩ (0.1Ω - 0.01 MΩ) |
| Basic accuracy | 0.2%+2 |
| Capacity range (resolution) | 1000 nF - 10 mF (0.1 nF - 0.001 mF) |
| Basic accuracy | 1.0%+5 |
| Frequency range (resolution) | 100 Hz - 10 MHz (0.01 Hz - 0.1 MHz) |
| Basic accuracy | 0.02%+1 |
| Diode test (Accuracy) | 1V (0.5%+10) |
| Temperature measurement (accuracy) | -200 to 1372℃ (1%+1℃) |
| Display resolution | 10000 counts |
| Built-in flashlight | Yes |
| True-RMS | Yes |
| Weight | 545 g (with batteries) |
| Dimensions | 198 x 96 x 57 mm |
For more information, please refer to the datasheet at the bottom of this page.
Accessories
The Keysight U1241C is delivered including:
- Test probe set
- IR to USB cable
- Quick Start Guide
- 4x 1.5V batteries
- Certificate of calibration
Avantages et inconvénients
- 10000 counts
- IP67
- Water and dust resistant
- No T1-T2 differential temperature measurement
- No low impedance option
Téléchargements
| Keysight U1240 datasheet |
 (3.6 MB) |
Download |
