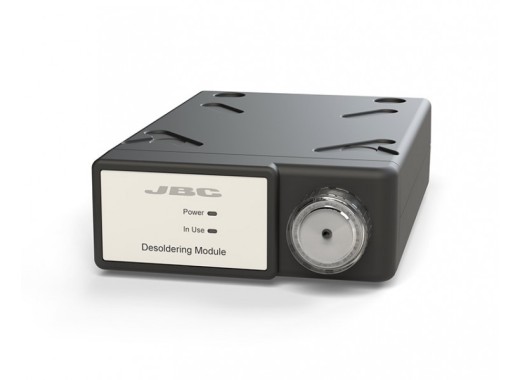

JBC MS-A desoldering pump
Détails
The JBC MS-A is a stand-alone electrical desoldering pump suitable for the JBC DI-2D control unit. The pump works with the comfortable DS360 and DR560 desoldering irons.
The pump delivers a suction of 9 SLPM and a static pressure of 570 mm Hg.
JBC MV-A
Are you looking for a pneumatic desoldering pump? Take a look at the JBC MV-A desoldering pump. Pay attention! This desoldering pump requires clean and dry compressed air.
JBC Modular line
The JBC modular line allows you to connect your module to the desired control unit and extend it other modules. More information about the modular line can be found at this page.
La garantie standard de 2 ans peut être prolongée à 3 ans en enregistrant votre appareil.
Specifications
| Static pressure | 570 mm HG (75% vacuum) |
| Flow rate | 9 SLPM [L/min] |
| Voltage | 24V (from control unit) |
| Dimensions | 225 x 145 x 55 mm |
| Weight | 1.19 kg |
| ESD-safe | Yes |
Accessories
The JBC MS-A desoldering pump is supplied including:
- Module cable connector
- User manual
- Suction filter
- Cotton filters
- 50 Filters Box
Téléchargements
| JBC MS-A manual |  (667.25 KB) | Télécharger |
