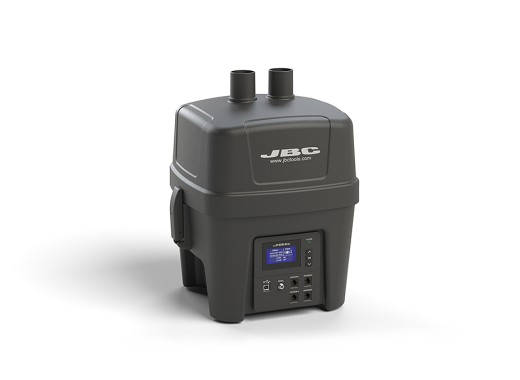

The JBC FAE1 is a high quality, highly efficient fume extractor. The FAE1 uses smart technology to measure when the soldering station is in use, so that the fume extractor is only be switched on when needed. Up to 2 stations can be connected to the fume extractor (this function is only possible for soldering stations with a ROBOT or USB A connection). The JBC FAE1 also features an integrated extraction system in the soldering holder, which allows the system to record when the soldering station is at rest and automatically extract the fume. This function requires the FAE040 and the FAE050/FAE060.
The device has 3 preset modes for fume extraction, namely low, medium and high. There is also the function to adjust the airflow according to personal preferences.
We at Eleshop recommend that you use the following accessories for a basic setup:
FAE010 flexible hose | Flexible hose for connecting your JBC FAE fume extractor with the FAE070 flexible arm | |
FAE070 flexible arm | Flexible arm that can be mounted on your workbench to easily suck up all solder fumes. The FAE070 must be connected to the FAE010 to be connected to the FAE fume extractor. |
Be careful! These accessories are not included! You must order them separately by adding them to your shopping cart. If you are interested in more accessories for the JBC FAE fume extractor, please contact us.
Inlets | 2 |
Power | 110 W |
Static pressure | 3200 Pa |
Airflow | 180 m3/h |
Noise level | ≤55 dB |
Filter | Fine dust- (M5), activated carbon- and HEPA filter (H13) |
Filter efficiency |
99.95% of particles >0.3μm |
Connectivity |
USB-B, RJ12, Pedal |
Dimensions | 382 x 344 x 476 mm |
Weight | 10.5 kg |
The JBC FAE1 comes with:
JBC FAE1 user manual |
(2.37 MB) | Download |
