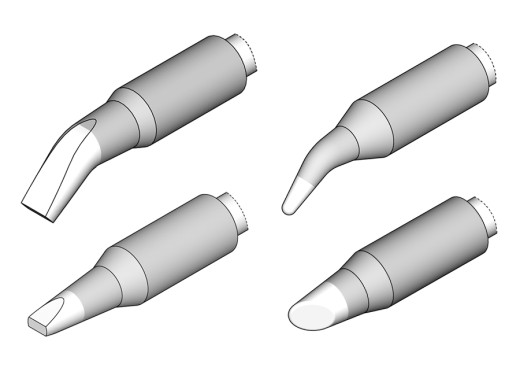

JBC C250 series soldering tips

JBC C250 soldering tips are suitable for working with the JBC AL250/AP250 Auto-Feed soldering irons. JBC soldering tips have a long lifespan, and thanks to the JBC heating system they last up to 5 times longer than tips from competing brands.

Depending on your purpose, the right tip can simplify the soldering process. For SMD soldering a fine tip is suitable, but to heat larger surfaces a wider tip is necessary. We can supply all soldering tips from the JBC catalogue. If the soldering tip you wish does not appear on this page, please let us know and we will add it for you.
You can select the type of tip you want to buy on top. The different models are described below.

Conical bent

Model	Diameter tip (mm)	Price	Stock
C250-420	0.4	44.52 TTC : 44,52 € HT : 37,10 €
C250-401	0.6	44.52 TTC : 44,52 € HT : 37,10 €
C250-402	0.8	44.52 TTC : 44,52 € HT : 37,10 €
C250-403	1.0	44.52 TTC : 44,52 € HT : 37,10 €
C250-409	1.7	44.52 TTC : 44,52 € HT : 37,10 €
C250-410	2.2	44.52 TTC : 44,52 € HT : 37,10 €

Chisel

Model	Dimensions tip (mm)	Price	Stock
C250-407	1.2 x 0.7	44.52 TTC : 44,52 € HT : 37,10 €
C250-408	2.2 x 1.0	44.52 TTC : 44,52 € HT : 37,10 €
C250-413 (twisted)	2.2 x 1.0	44.52 TTC : 44,52 € HT : 37,10 €
C250-411	4.8 x 1.5	44.52 TTC : 44,52 € HT : 37,10 €

Chisel bent

Model	Dimensions tip (mm)	Price	Stock
C250-404	1.2 x 0.7	44.52 TTC : 44,52 € HT : 37,10 €
C250-405	1.8 x 0.8	44.52 TTC : 44,52 € HT : 37,10 €
C250-406	2.2 x 1.0	44.52 TTC : 44,52 € HT : 37,10 €
C250-418	3.2 x 1.5	44.52 TTC : 44,52 € HT : 37,10 €
C250-412	4.8 x 1.5	44.52 TTC : 44,52 € HT : 37,10 €

Bevel

Model	Diameter tip (mm)	Price	Stock
C250-426	1.3	42.23 TTC : 42,23 € HT : 35,19 €
C250-414	2.2	44.52 TTC : 44,52 € HT : 37,10 €
C250-424	3.0	44.95 TTC : 44,95 € HT : 37,46 €
C250-415	3.8	44.52 TTC : 44,52 € HT : 37,10 €

Large consumers

If you order 10 or more pieces at once, we will give you a discount (also on mixed orders). Please contact us for a tailor-made offer
