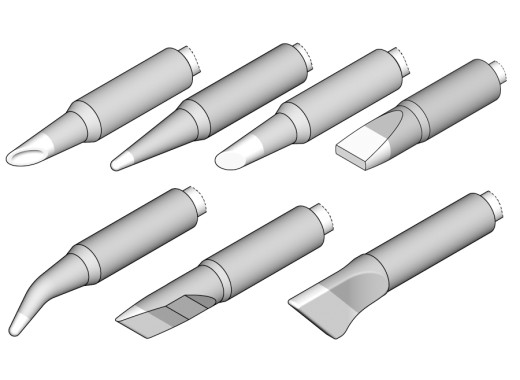

JBC C105 series soldering tips

The C105 soldering tips are suitable, among other things, for the NASE tools with type designation 105.

These JBC have a long lifespan and, partly due to the JBC heating system, last up to 5 times longer than tips from the competing brands.
Depending on your purpose, the right tip can greatly simplify your soldering work. For SMD soldering you will need a fine point but for heating larger surfaces it is necessary to use a wider point. We can deliver all items from the JBC catalog. If the item you are searching for is not on this page you can contact us and we will add it for you.

In the top right you can select the tip that you would like to purchase. The different tips are described below.

Conical

Model	Diameter tip (mm)	Price	Stock
C105-126	0.1 (extreme fine tip)	51.36 TTC : 51,36 € HT : 42,80 €
C105-101	0.1	51.36 TTC : 51,36 € HT : 42,80 €
C105-103	0.3	51.36 TTC : 51,36 € HT : 42,80 €
C105-106	0.5	51.36 TTC : 51,36 € HT : 42,80 €
C105-107	0.8	51.36 TTC : 51,36 € HT : 42,80 €

Conical bent

Model	Diameter tip (mm)	Price	Stock
C105-124	0.1 (S1)	51.36 TTC : 51,36 € HT : 42,80 €
C105-118	0.1	51.36 TTC : 51,36 € HT : 42,80 €
C105-105	0.3	51.36 TTC : 51,36 € HT : 42,80 €
C105-110	0.5	51.36 TTC : 51,36 € HT : 42,80 €

Chisel

Model	Dimensions tip (mm)	Price	Stock
C105-116	0.2 x 0.1	51.36 TTC : 51,36 € HT : 42,80 €
C105-117	0.4 x 0.2	51.36 TTC : 51,36 € HT : 42,80 €
C105-108	0.6 x 0.3	51.36 TTC : 51,36 € HT : 42,80 €
C105-125	1.0 x 0.2	51.36 TTC : 51,36 € HT : 42,80 €
C105-113	1.0 x 0.3	46.22 Prix normal : 51,36 € Now: TTC : 46,22 € HT : 38,52 €
C105-213	1.0 x 0.3 (S1)	51.36 TTC : 51,36 € HT : 42,80 €
C105-221	1.3 x 0.3	51.36 TTC : 51,36 € HT : 42,80 €
C105-222	1.6 x 0.3	51.36 TTC : 51,36 € HT : 42,80 €
C105-114	1.8 x 0.5	51.36 TTC : 51,36 € HT : 42,80 €
C105-214	1.8 x 0.5 (S1)	51.36 TTC : 51,36 € HT : 42,80 €
C105-131	2.0 x 0.35	75.33 TTC : 75,33 € HT : 62,77 €
C105-223	2.4 x 0.6	51.36 TTC : 51,36 € HT : 42,80 €

Bevel

Model	Diameter tip (mm)	Price	Stock
C105-109	0.6	51.36 TTC : 51,36 € HT : 42,80 €
C105-127	1.0	51.36 TTC : 51,36 € HT : 42,80 €

Spoon

Model	Diameter tip (mm)	Price	Stock
C105-128	1.0	51.29 TTC : 51,29 € HT : 42,74 €

Knife

Model	Dimensions tip (mm)	Price	Stock
C105-120	1.0 x 0.2	51.36 TTC : 51,36 € HT : 42,80 €
C105-112	2.5 x 0.3	51.36 TTC : 51,36 € HT : 42,80 €
C105-212	2.5 x 0.3 (S1)	51.36 TTC : 51,36 € HT : 42,80 €
C105-129	2.8 x 0.2	75.33 TTC : 75,33 € HT : 62,77 €

Blade

Model	Dimensions tip (mm)	Price	Stock
C105-211	3.5 x 0.7	51.36 TTC : 51,36 € HT : 42,80 €
C105-111	3.5 x 0.7	51.36 TTC : 51,36 € HT : 42,80 €

Conformal coating removal

Model	Dimensions tip (mm)	Price	Stock
C105-115*	1 mm	60.32 TTC : 60,32 € HT : 50,27 €

large consumers

When purchasing 10 pieces or more at once we give a discount (also on mixed orders). Contact us for a personal offer.

Téléchargements

JBC soldering brochure	(2.38 MB)	Télécharger
JBC C105 soldering tips	(628.18 KB)	Télécharger
