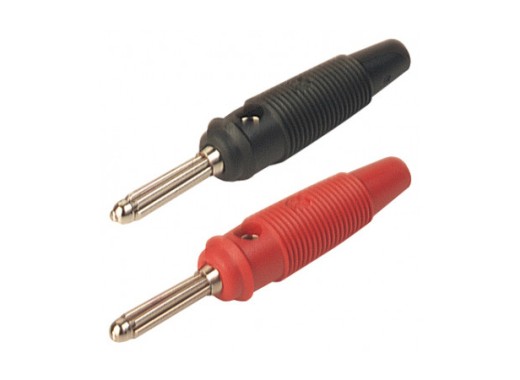

Hirschmann Buela 30 K

Attention : ce produit est vendu à l'unité.

These Buela 30 K are break-proof insulated plugs. With the thickness of 4 mm they can be connected to most standard measuring objects such as clamps. The flexible insulated end reduces the risk of cable breakage. Because of the powerful spring-loaded tip, the contact resistance with only 3 mΩ is very small. The tip is made of nickel, which causes this low resistance. The solder connection in the plug is suitable for wires with a diameter up to 2.5 mm².

The plugs are tested to withstand voltages of 60 V DC and currents of 30 A. They are available in black and red.

These connectors are meant to solder in a wire.
