GW Instek GDS-207 handheld oscilloscope
Détails

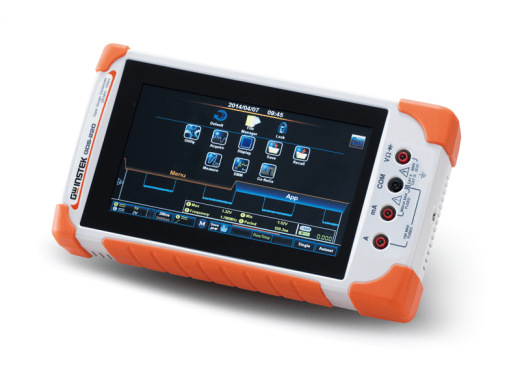

The GDS-207 from GW Instek is a full-fledged scope in a unique jacket. With the 7" touchscreen that can be used in both 'portrait' and 'landscape' mode, the mobile scope can be used in multiple screen layouts. With the built-in rechargeable battery, the 207 is easy to take with you.
The GDS-207 is a normal scope outside of mobility with a bandwidth of 70 MHz. The vertical resolution is adjustable from 2mV/div, making it easy to measure small signals. On both channels, the scope has a memory of 1 M points to store the signal.
In addition to the oscilloscope functionality, the GDS-207 also features a fully functional digital multimeter with 5000 counts. It can be used at the same time as the scope and can be displayed next to each other on the screen. This makes it possible to measure 2 signals at the same time, for example, and currents that run through a network.
Because of the touchscreen it is easy to add extra functionality with which the user can easily perform certain tasks on the scope. For example, a scientific calculator can easily be used on the screen, but there are also applications installed for interpreting colour codes of resistors, or SMD resistance codes. There is also a tool for calculating the attenuation of certain basic circuits on the GDS-207.
The scope can easily store snapshots of measurements, which can be viewed in the menu in case it is not possible to display them on a computer. It is also possible to transfer them to a computer or smartphone because the GDS-207 is recognized as an external storage.
Specifications
| Oscilloscope | |||||||||||
| Channels | 2 | ||||||||||
| Bandwidth | 70 Mhz | ||||||||||
| Sample rate | 1 GSa/s | ||||||||||
| Rise time | < 5 ns | ||||||||||
| Memory depth | 1 Mints | ||||||||||
| Vertical scale | 2 mV/div - 10V/div | ||||||||||
| Horizontal scale | 100ms/div - 100s/div | ||||||||||
| Multimeter | |||||||||||
| Measuring range and precision | |||||||||||
| |||||||||||
| Functions | Auto Range, Max, Min, Hold, Trend plot | ||||||||||
| General | |||||||||||
| Battery | 6100 mA/hr 7.4V (4.1 hour usage) | ||||||||||
| Screen | 7" 480x800 capacitive LCD | ||||||||||
| Memory | 120 MB | ||||||||||
| Connectivity | Mini-USB, 12v charging pin | ||||||||||
| Dimensions | 240 x 136 x 60 mm | ||||||||||
| Weight | 1.5 kg | ||||||||||
For more information, the manual and datasheet can be found here. You can also download the driver, software here.
Accessories
The GDS-207 comes with:
- 100 MHz probe
- Multimeter test wire x2
- Bag + case
- Charger
- Wristband
