The GM328A test components and shows the test results on the clear digital
LCD screen. This tester automatically detects if a NPN/PNP transistor, FET, diode, dual diode, thyristor or SCR is connected and has an automatic identification of the pinout of the components.
With NPN and PNP transistors the common-emitter current gain factor and emitter threshold voltage from the emitter leakage current are measured.
Furthermore, there is support for 2 resistance measurements that represent the positive and negative on-state voltage. From an FET, the
gate threshold voltage and gate capacity are measured. This tester can also be used as a signal generator and frequency meter.

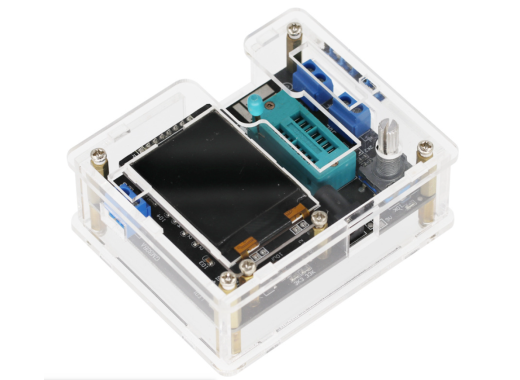

The tester comes with a transparent case that has yet to be put together. (This case can slightly differ from the pictures)
Attention! There is no adapter included with this product. A 9V battery can also be used with this cable.
Specifications
| Display | 160 x 128 LCD (37 x 30 mm) |
| Power supply | 6.8-12 V adapter (niet included) |
| Current | 30 mA |
| Resistance range (resolution) | 0 - 50 MΩ (0.01 Ω) |
| Capacitance range (resolution) | 25pF - 100mF (1 pF) |
| DC voltage range | 0 - 50 V |
| Frequency range | 1 Hz - 2MHz |
| PWM signal | 1 % - 99 % |
| Dimensions PCB | 78 x 62 mm |
