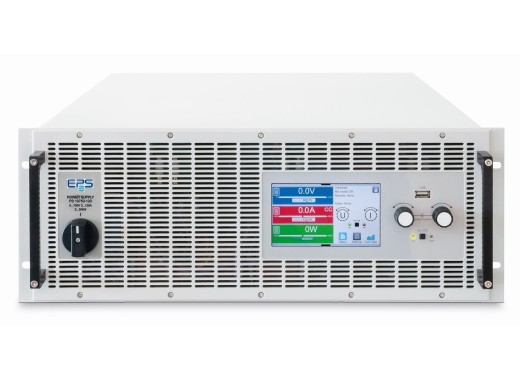

Alimentation électrique bidirectionnelle EA-PSB 11000-80 4U

The Elektro Automatik EA-PSB 11000-80 4U bi-directional laboratory power supply is both a load and a power supply in one device. It can deliver up to 80A, 1000V & 30000W and operates at up to 96% efficiency. This lab power supply uses two quadrants in source and sink mode, allowing you to effortlessly switch between these two modes.

It features automatically switching DC input/output stages, with control modes for CC, CV, CP, and CR, including fast crossover transitions. Thanks to its form factor, it can be placed on a desktop or mounted in a 19" rack.

This product also includes an integrated function generator with predefined waveforms. The high-resolution 16-bit ADC, 5" color TFT display, and interfaces such as USB, analog, master/slave, and Ethernet — along with optional interfaces like CAN, CANopen, RS232, Profibus, EtherCAT, Profinet, and Modbus — make it suitable for a wide range of applications. These include automotive testing with LV123, LV124, and LV148 procedures, battery testing with integrated battery/test mode, fuel cell simulation, and solar cell testing.

Are you looking for more power? We can deliver the PSB series in any required power output, up to >100kW. Contact us for more information

Series comparison

Elektro Automatik offers various power supplies for various applications, where the most important differences can be seen below:

Model overview

The models in the PSB series differ mainly in total power, voltage range and current range.

Specifications

Accessories

• No included accessories

Téléchargements

PSB 10000 4U series datasheet	(1.44 MB)	Télécharger
PSB 10000 4U series	(4.35 MB)	Télécharger
