Impédancemètre audio

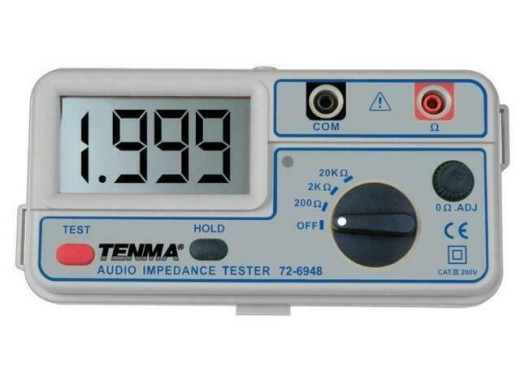

This audio impedance meter can measure a speaker system's actual impedance at 1 KHz. The meter is able to measure the following ranges: 200 Ω, 2 KΩ, and 20 KΩ. These can be selected by the use of the rotary selector on the meter. Due to this range, testing a home theater and testing commercial sounds systems are possible. With the meter it is possible to measure an individual speaker as well as 25V/70V distributed speaker systems. Also, continuous hands free operation is provided by the timer function of the meter. This timer will last 3-5 minutes after pressing the TEST ON/OFF button.

The values are easy to read due to the 3 ½ digit LCD display on the meter. Furthermore, the case of the meter is rugged, double insulated, and CAT III rated for use up to 200 V. Additionally, the audio impedance meter has a low battery indication, data hold function, and timer function.

Specifications

Measurement range	200Ω / 2KΩ / 20KΩ
Test frequency	1 kHz
Display	LCD 3 ½ digit 2000 counts
Batteries	6 x AA (not included)
Dimensions	178 x 82 x 77 mm
Weight	Approx. 0.5 kg

Accessories

The audio impedance meter will be delivered including:

• Test leads
• Carry case
