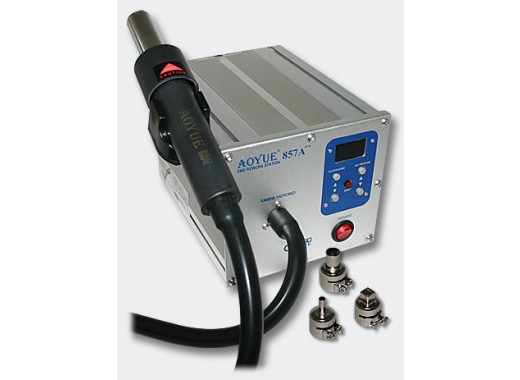

Aoyue 857A++ hot-air soldering station
Détails
This Aoyue 857A++ hot-air soldering station is special because of its high power of 500 watts. This means that the station quickly reaches its operating temperature. With the digital display and the push buttons, the temperature can be easily set between 100 and 480 degrees. The compressor can blow out approximately 23 litres of air per minute. Furthermore, the Aoyue is equipped with overheating protection.
The 857A++ comes with 3 nozzles. There are many other nozzles available. We can supply nozzles for e.g. SOP, PLCC and QFP in various sizes. All options can be found at this page.
Specifications
| Power | 500 W |
| Temperature range | 100 °C to 480 °C |
| Compressor type | Turbine |
| Air flow rate | max 23 l/min |
| ESD security | yes |
| Hose length | 86 cm |
| Dimensions | 132 mm x 121 mm x 192 mm (w x h x d) |
| Weight | 2.3 kg |
For more information, see the product manual.
Accessories
The Aoyue 857A++ hot air station comes with:
- 3 nozzles (round 6/12mm, square 9x9mm)
- Holder for the hot air tube
- Power cable
- 'IC-popper' for removing icons from printed circuit boards
- User manual
